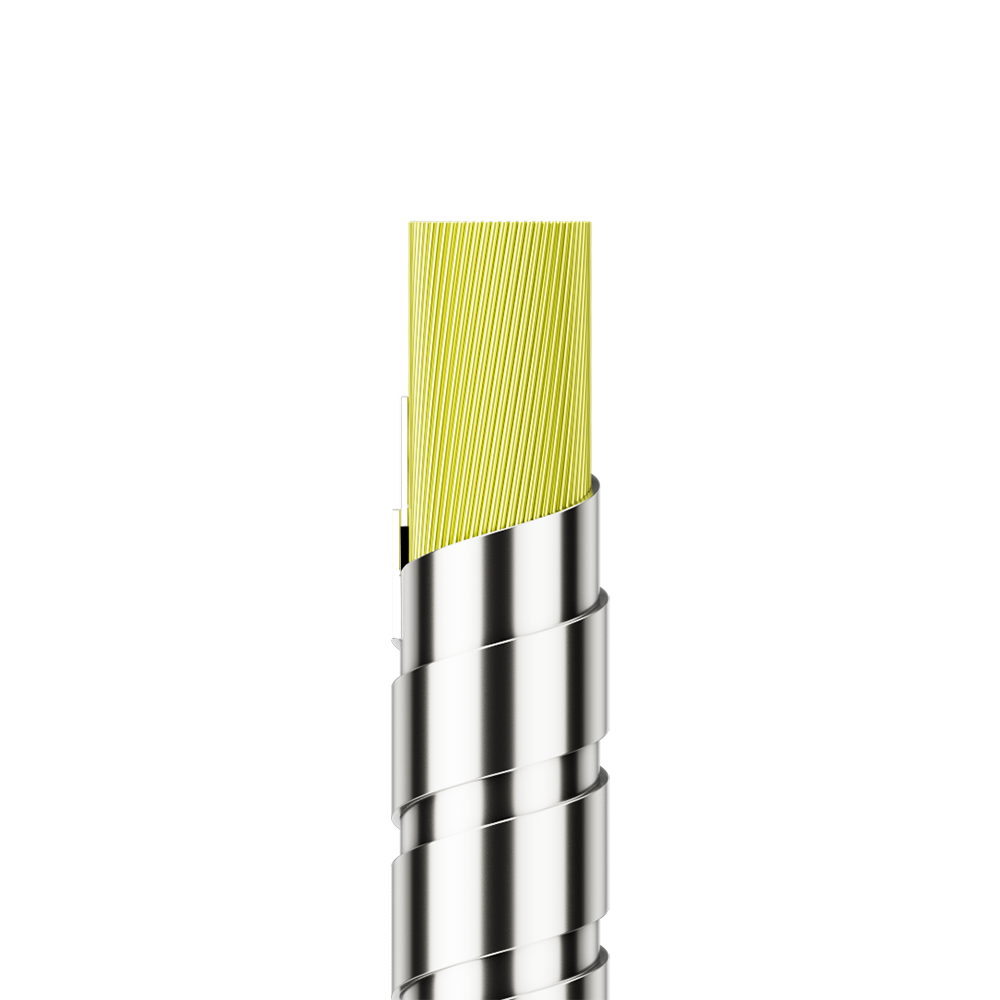

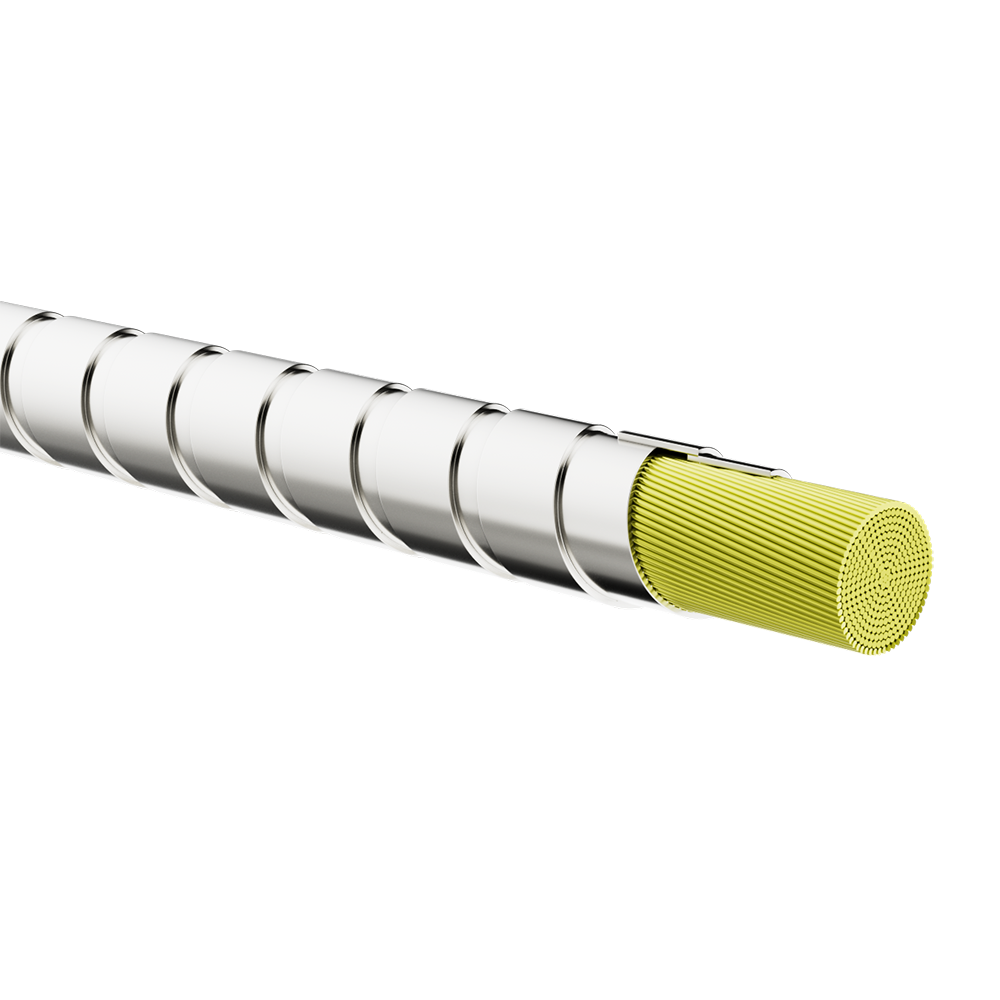

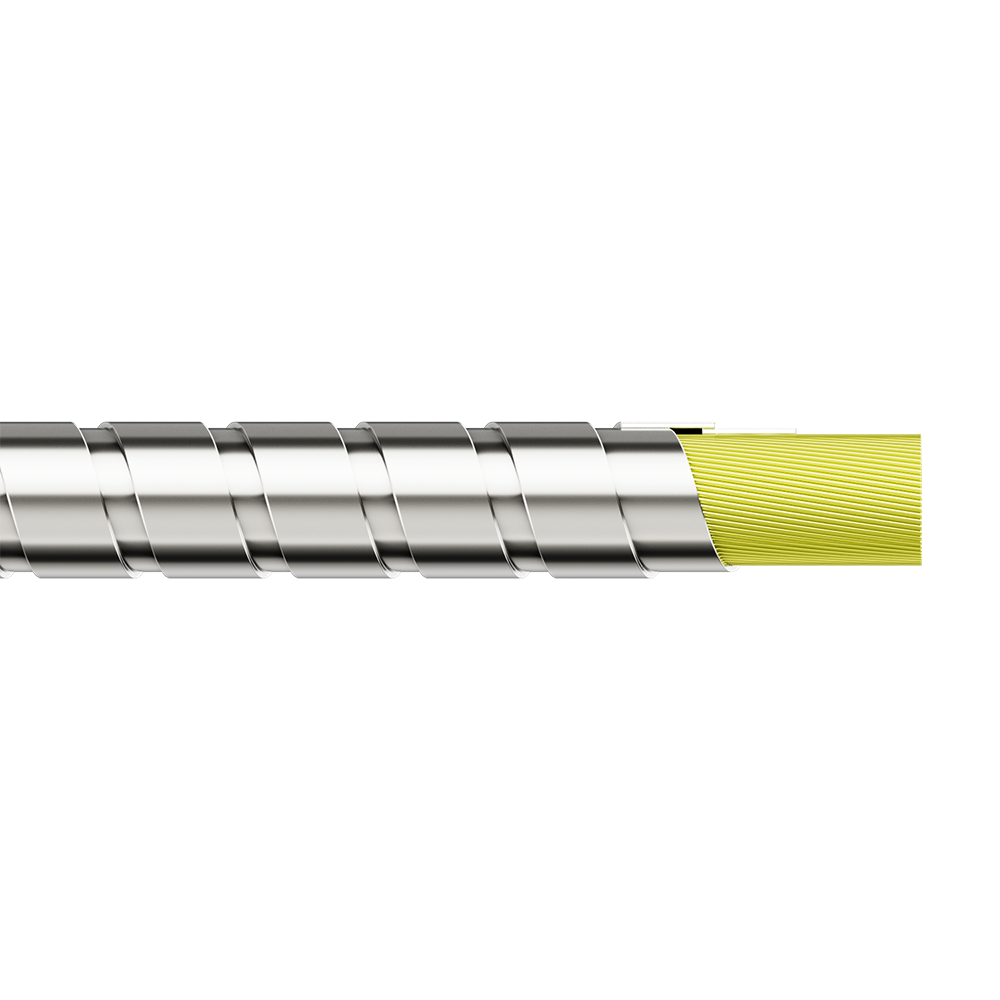

Multi-layer Tinsel Wire

Advantages

① The product structure is flexible, and the resistance can be lower at the same outer diameter.
② tensile, bending resistance is much higher than ordinary round wire conductor, tensile strength than the same specifications of copper wire 2-10 times higher.
③ excellent flexibility, resistance to flexural swaying than the same specifications of copper wire dozens of times higher.
④ can use a variety of metal material electrical properties and mechanical properties of the advantages of conductor resistance and mechanical special requirements can be met.⑤ Hardness, resilience and molding is better than stranded wire.

Application Areas

Data cables, cardiac monitoring type cables, EEG cables, physical therapy cables, ultrasound cables, hearing aid cables.

Tel：

+86-769-81189852
E-Mail：

carol@lk-tinsel-wire.com

Product Parameters

Product parameters for Multi-layer tinsel wire:

norm	Finished OD（mm）	Copper Cladding Direction	resistive（Ω/m）（20℃）	tensile strength（kgf）	unit length（m/kg）（reference point）
0.10mm	0.10±0.015	Z/S	6.0-12.0	≥1.00	23000-25000
0.14mm	0.14±0.015	Z/S	4.5-8.0	≥1.00	14000-20000
0.16mm	0.16±0.015	Z/S	4.0-5.0	≥1.20	8500-12000
0.18mm	0.18±0.015	Z/S	4.5-5.0	≥4.00	7300-8000
0.20mm	0.20±0.02	Z/S	3.0-4.0	≥4.20	5000-5800
0.23mm	0.23±0.02	Z/S	3.5-4.5	≥4.50	4800-6000
0.25mm	0.25±0.02	Z/S	2.5-3.5	≥6.00	4400-5200
0.30mm	0.30±0.02	Z/S	2.5-4.0	≥8.00	3000-3500
0.50mm	0.50±0.02	Z/S	2.0-4.0	≥12.00	2800-3900
0.60mm	0.60±0.05	Z/S	1.0-2.0	≥18.00	1700-2500

Description:

①Metal material selection: oxygen-free copper OFC; tin-plated copper; silver-plated copper; single-crystal copper OCC; alloy copper (copper-tin alloy CuSn; copper-iron alloy CuFeP; copper-silver alloy CuAg; copper-magnesium alloy CuMg; nickel-copper alloy (ConocoPower); monel alloy).

② Center filament selection: para-aramid (Kevlar); heterocyclic aramid (Technora); meso-aramid (Nomex); aromatic polyester fiber (Vectra); carbon fiber (PAN-based); glass fiber (Glassfiber); polyester (PET); nylon 66 (Nylon).
