Advantages
① Flexible product structure, controllable product outer diameter and resistance.Application Areas

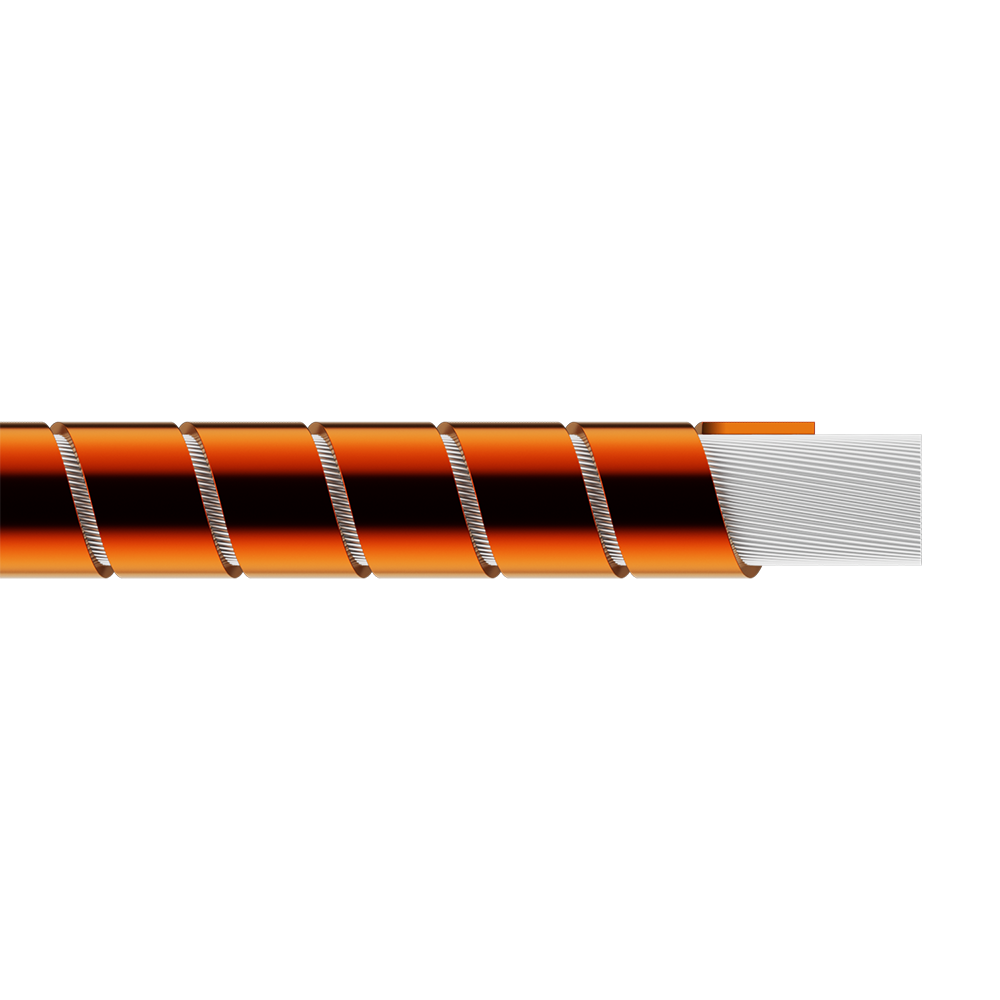

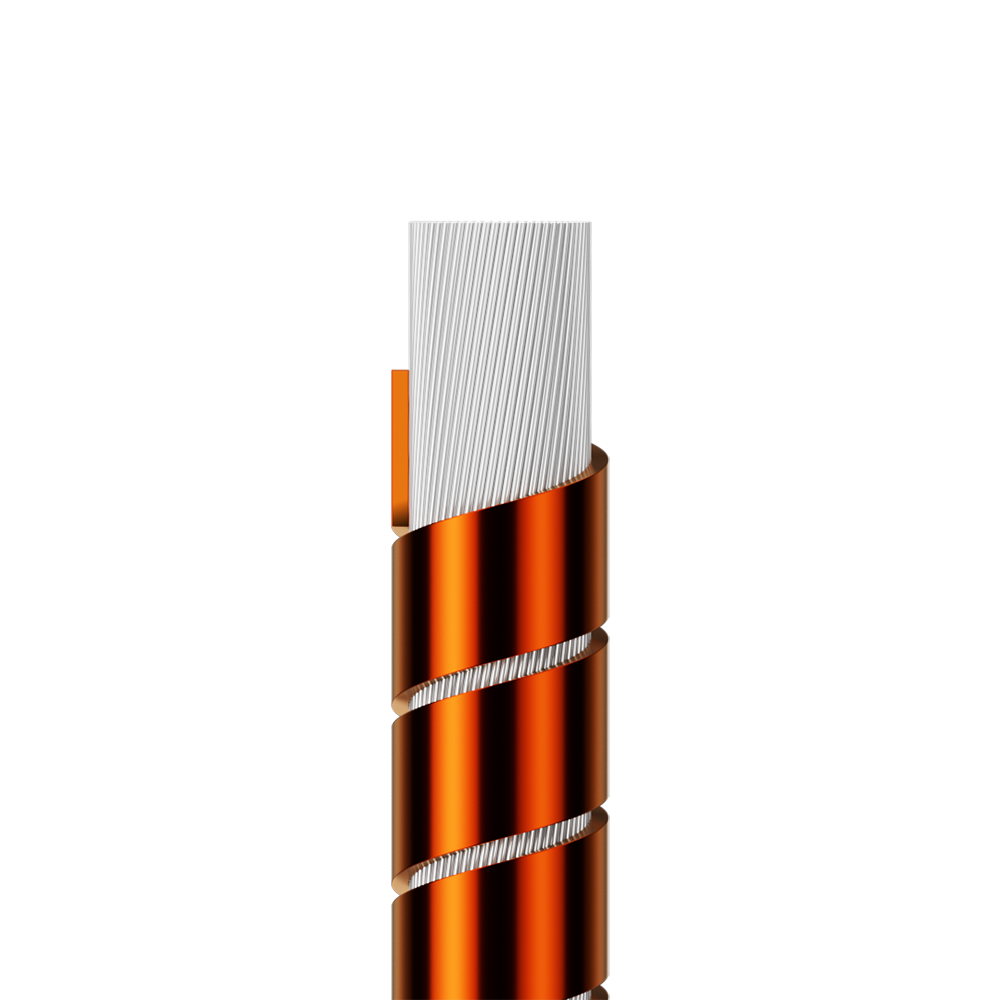

Telephone spring cables, headphone cables, communication cables, data cables, signal cables, car charging cables, robot cables, medical equipment cables.Single layer tinsel wire product parameters：
| norm | Finished OD（mm） | Copper Cladding Direction | resistive（Ω/m）（20℃） | tensile strength（kgf） | unit length（m/kg）（reference point） |
| 0.02mm | 0.02±0.01 | Z/S | 55-75 | ≥0.15 | 170000-220000 |
| 0.04mm | 0.04±0.01 | Z/S | 35-55 | ≥0.30 | 110000-130000 |
| 0.06mm | 0.06±0.01 | Z/S | 19-42 | ≥0.50 | 95000-96000 |
| 0.08mm | 0.08±0.01 | Z/S | 25-28 | ≥0.60 | 42000-53500 |
| 0.10mm | 0.10±0.01 | Z/S | 12-30 | ≥1.00 | 26000-49500 |
| 0.16mm | 0.16±0.015 | Z/S | 6-20 | ≥2.00 | 10000-18000 |
| 0.18mm | 0.18±0.015 | Z/S | 5-16 | ≥4.00 | 9000-10000 |
| 0.30mm | 0.30±0.02 | Z/S | 3-8 | ≥7.00 | 3800-6400 |
| 0.40mm | 0.40±0.02 | Z/S | 2-6 | ≥10.00 | 2800-3400 |
| 0.60mm | 0.60±0.02 | Z/S | 1-4 | ≥20.00 | 2300-2450 |
Description:
①Metal material selection: oxygen-free copper OFC; tin-plated copper; silver-plated copper; single-crystal copper OCC; alloy copper (copper-tin alloy CuSn; copper-iron alloy CuFeP; copper-silver alloy CuAg; copper-magnesium alloy CuMg; nickel-copper alloy (ConocoPower); monel alloy).
② Center filament selection: para-aramid (Kevlar); heterocyclic aramid (Technora); meso-aramid (Nomex); aromatic polyester fiber (Vectra); carbon fiber (PAN-based); glass fiber (Glassfiber); polyester (PET); nylon 66 (Nylon).
