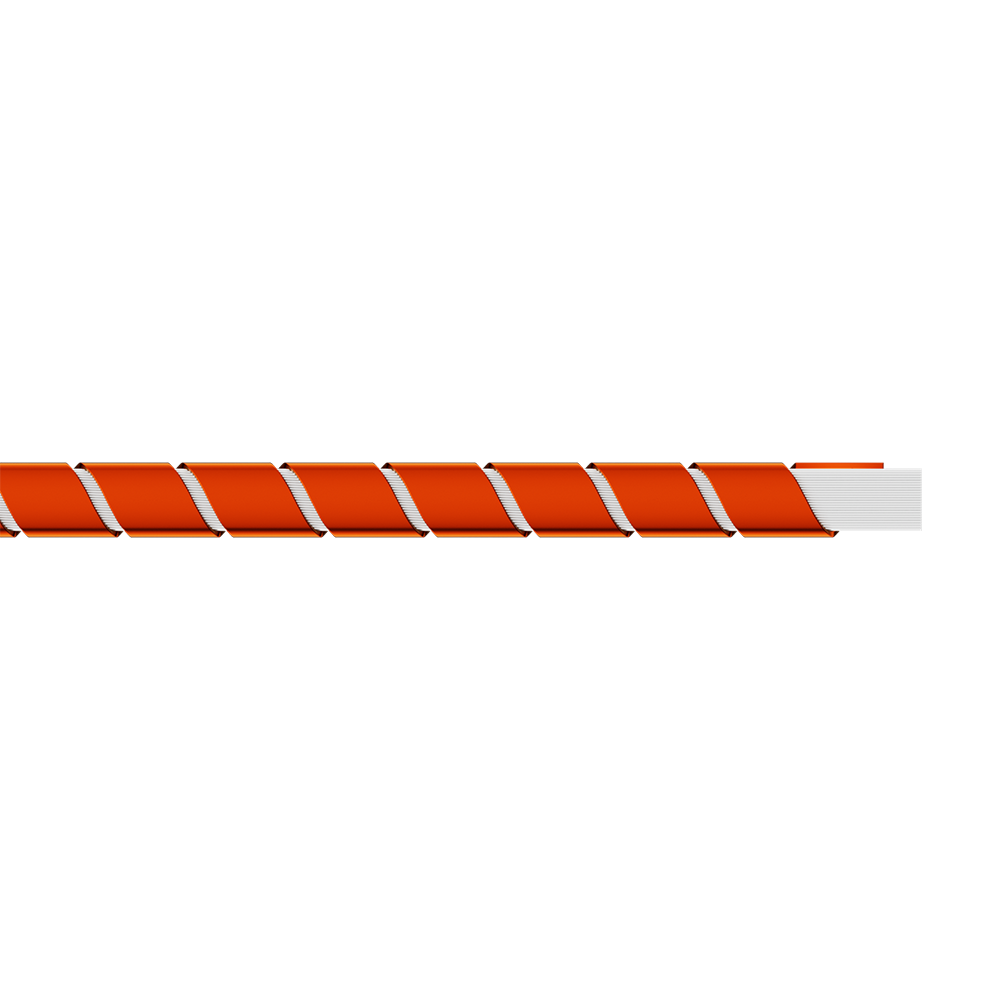

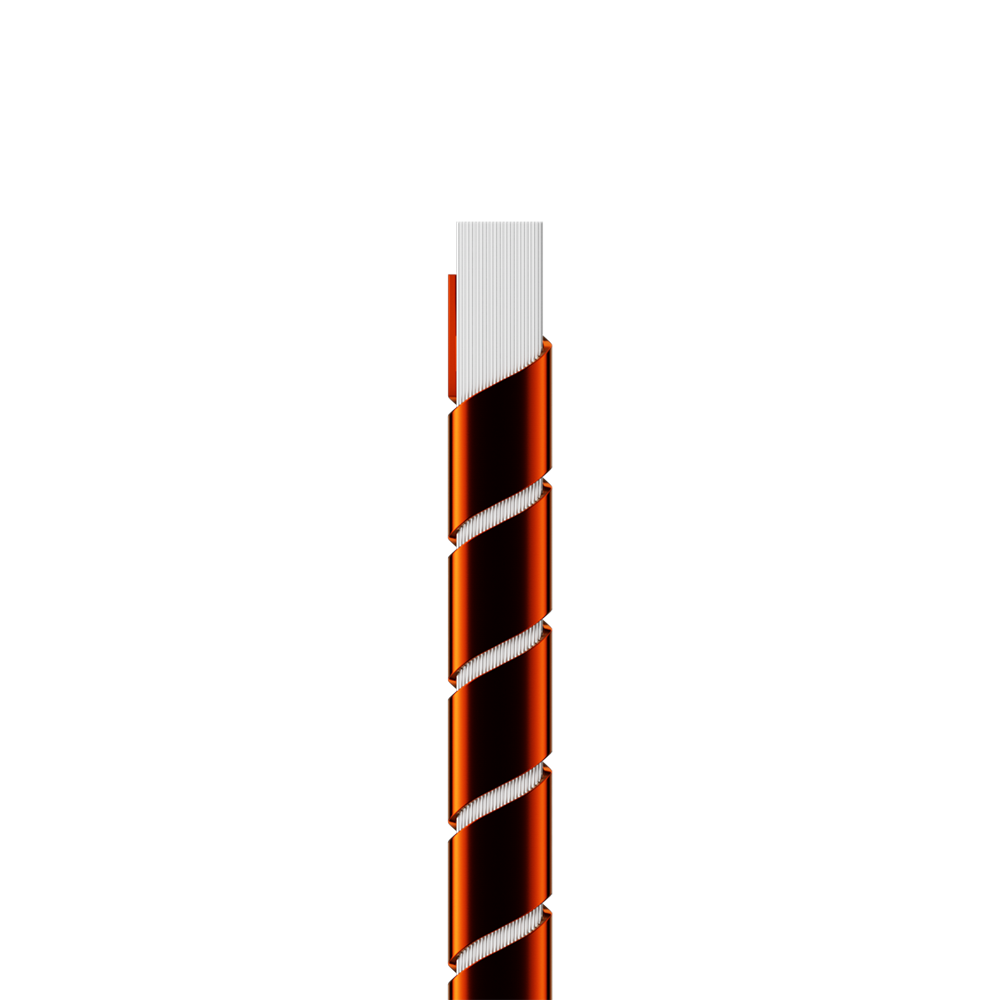

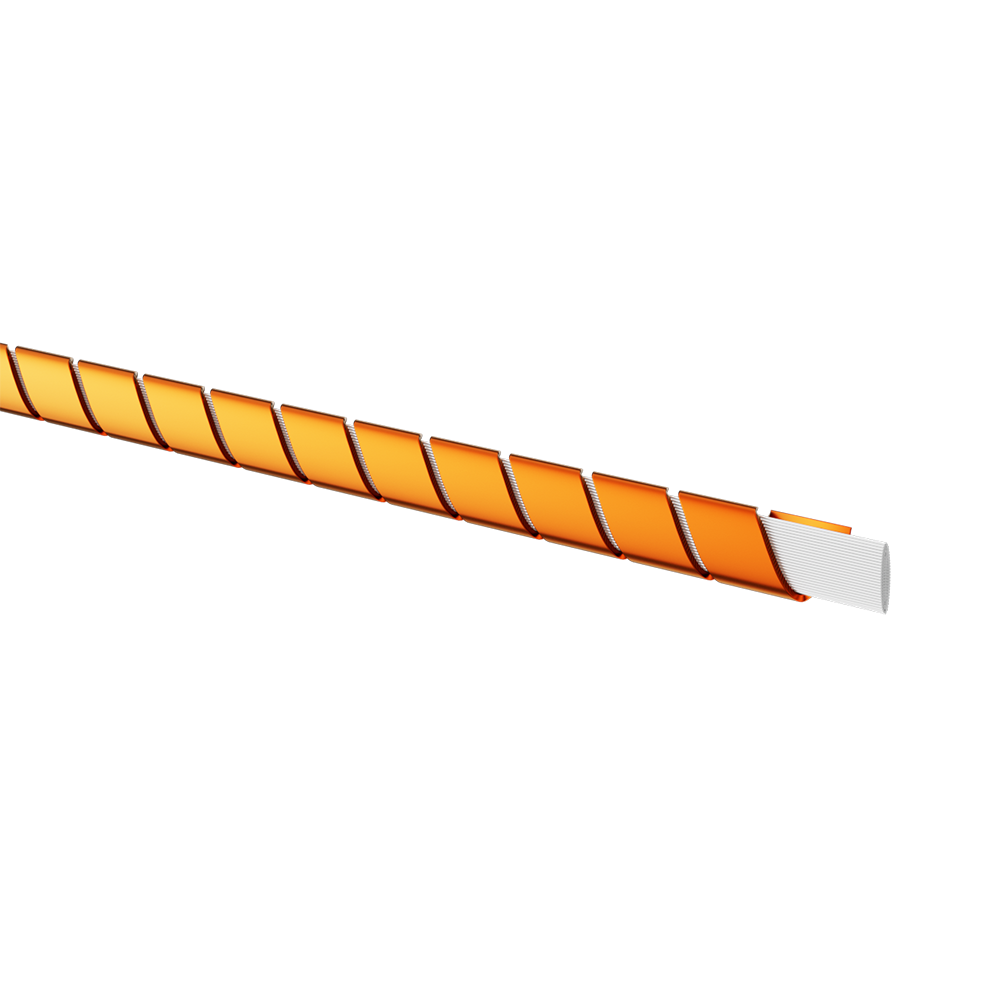

Flat Tinsel Wire

Advantages

① Flexible product structure, controllable product outer diameter and resistance.
② tensile, bending resistance is much higher than ordinary round wire conductor, tensile strength than the same specifications of copper wire 2-10 times higher.
③ Excellent flexibility, resistance to flexural swaying than the same specifications of copper wire dozens of times higher.
④ can use a variety of metal material electrical and mechanical properties of the advantages of conductor resistance and mechanical special requirements can be met.

Application Areas

Heating Blanket, Medical Device Thread, Small Home Appliance Heating Thread, Intelligent Weaving Thread, Automotive Interior Sewing Thread.

Tel：

+86-769-81189852
E-Mail：

carol@lk-tinsel-wire.com

Product Parameters

Product parameters for Flat Tinsel Wire:

norm	Finished OD（mm）	Copper Cladding Direction	resistive（Ω/m）（20℃）	tensile strength（kgf）	unit length（m/kg）(Reference values)
0.08mm	0.16±0.02	Z/S	25-28	≥0.5	42000-53500
0.10mm	0.20±0.02	Z/S	12-30	≥0.8	26000-49500
0.12mm	0.24±0.02	Z/S	8-22	≥0.8	22000-45000
0.15mm	0.26±0.02	Z/S	6-18	≥1.0	11000-30000
0.18mm	0.28±0.02	Z/S	5-16	≥1.5	9000-10000
0.20mm	0.30±0.02	Z/S	4-12	≥1.5	4500-6700
0.23mm	0.34±0.02	Z/S	3.5-10	≥4.0	4000-6500
0.25mm	0.36±0.02	Z/S	2.5-8	≥4.0	3600-5000
